The rising demand for flexible PCBs: applications, challenges, and future trends

A close-up of flexible PCBs displayed on wooden stands, showcasing advanced design and innovation by copperdot technology. Experience the famous Bosch quality mixed with the expertise by copperdot when it comes to supplying just the PCB you need.

As technology continues to evolve, the demand for more compact, lightweight, and versatile electronic solutions has led to a surge in flexible PCB adoption. These innovative circuit boards are revolutionizing product design across industries, from automotive to medical devices.

Understanding flexible PCBs

Flexible PCBs, or flex circuits, are engineered using thin, bendable materials—primarily polyimide—that allow them to conform to irregular spaces and dynamic applications. The basic structure consists of a flexible copper clad laminate with polyimide as the base material, bonded together with specialized adhesives or through adhesiveless techniques for more demanding applications. What makes these circuits particularly remarkable is their ability to maintain functionality while being extremely thin—in many cases as thin as 60 microns, which is the width of a human hair.

"With flex PCBs, we can achieve things that would be impossible with standard rigid boards," explains Martin Jovanov, Technical Expert at Bosch’s copperdot PCB procurement service. "You can have PCBs that are not just incredibly thin, but also remarkably resilient. Even at these minimal thicknesses, they maintain their structural integrity and performance."

Technical specifications of flexible PCBs

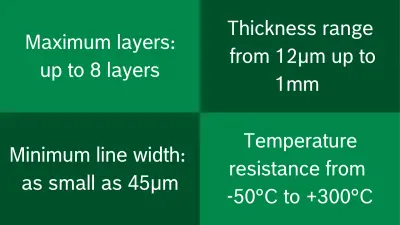

Key specifications of flexible PCBs, including maximum layers, thickness range, minimum line width, and temperature resistance, highlighting copperdot's expertise.
  • Layer count: Most commonly 1-2 layers, with up to 8 layers possible (though extremely challenging to manufacture)
  • Thickness range: from as thin as 0,06 mm up to 1mm in extreme cases, with typical thickness around 0.2mm
  • Minimum line width/spacing: can achieve as small as 45 microns
  • Temperature resistance: can withstand temperatures from -50°C to +300°C
  • Materials: Polyimide base with flexible copper foil, bonded using either adhesive or adhesiveless techniques

Key advantages of flexible PCBs

Design flexibility and space optimization

Flexible PCBs can be designed in various shapes and configurations, breaking free from the traditional rectangular form factor. They can branch in multiple directions, making them ideal for complex spatial requirements. This flexibility allows designers to optimize space usage in ways that would be impossible with rigid boards. The ability to create custom shapes through laser cutting enables precise fitting into tight or irregular spaces.

Enhanced durability

Despite their thin profile, flexible PCBs demonstrate impressive durability. As Jovanov notes, "They're really resilient and robust. Even with a thin piece, you cannot break it by hand—they can withstand significant stress while maintaining their integrity." This durability comes from both the inherent properties of polyimide and the specialized manufacturing processes used in their production.

Temperature resistance

Flexible PCBs excel in extreme conditions. "The base material can withstand temperatures up to 300 degrees Celsius," Jovanov explains, "which is significantly higher than standard FR4 materials that typically max out at 180 degrees." This superior temperature resistance makes them ideal for applications in harsh environments where standard PCBs would fail.

Production efficiency

Modern manufacturing techniques, including laser cutting and roll-to-roll production, enable precise and efficient production of flexible PCBs. "The roll-to-roll production process is unique to flex PCBs," Jovanov points out. "Unlike standard PCB production with fixed panels, flexible materials can be processed continuously, adding materials and performing operations as the substrate moves through the production line."

Growing demand across industries

A woman smiles while walking past her electric vehicle charging at home, symbolizing sustainable living enabled by modern technologies like PCBs supplied by copperdot for the automotive industry.

1. Automotive and electric vehicle (EV) revolution

The automotive sector, particularly electric vehicles, is experiencing a dramatic increase in flex PCB adoption. "In the past, flex PCBs weren't even used in the automotive sector," Jovanov observes. "But with the development of EVs, the demand has grown significantly. They're especially crucial in battery management systems, where they need to fit between battery packs, and in some special cases they need to be more than one meter long."

The use of flex PCBs in automotive applications presents unique challenges and requirements:

  • Need for robust vibration resistance
  • Ability to withstand automotive temperature cycles
  • Requirements for long-term reliability
  • Integration with rigid boards in hybrid designs
  • Compliance with automotive industry standards

2. Medical devices and implants

The medical device industry is pushing the boundaries of flex PCB applications. From hearing aids requiring ultra-thin circuits to implantable medical devices, flexible PCBs are enabling new possibilities in healthcare technology. Their ability to be produced in extremely thin profiles—some as thin as 12 microns—makes them ideal for these sensitive applications.

Key considerations for medical applications include:

  • Biocompatibility requirements
  • Ultra-thin design capabilities
  • Need for encapsulation in implantable devices
  • High reliability requirements
  • Sterilization compatibility

3. Robotics and automation

A particularly exciting growth area is robotics. "With robotic development, flex PCBs will be all over," Jovanov predicts. "Everything that involves bending—hands, legs, joints—will need flex PCBs because of their unique ability to maintain connectivity while in motion."

Applications in robotics require:

  • Dynamic flexing capability
  • High cycle life for repeated movements
  • Integration with sensors and actuators
  • Complex routing through moving joints
  • Resistance to mechanical stress

4. Consumer electronics

The consumer electronics sector continues to drive innovation in flexible PCB technology, particularly with the rise of foldable smartphones and wearable devices. These applications demand circuits that can withstand repeated bending while maintaining reliable performance.

Manufacturing challenges and solutions

A confident female scientist in a modern laboratory, symbolizing innovation in technology and research supported by copperdot's advanced solutions to supply high quality PCB’s

1. Material selection and handling

Working with flexible PCBs requires specialized materials and handling procedures. The production process often involves adhesive bonding layers and careful material selection based on the application's requirements. Some advanced applications use adhesiveless bonding techniques for enhanced environmental stability.

Key material considerations include:

  • Base material selection (polyimide thickness and grade)
  • Copper foil type and thickness
  • Adhesive vs. adhesiveless bonding
  • Cover lay or flexible solder mask selection
  • Stiffener material choice

2. Design considerations

Designing flexible PCBs requires careful attention to several factors:

  • Bend radius and stress points must be carefully calculated
  • Sharp angles should be avoided
  • Hole placement needs special consideration to prevent copper separation during flexing
  • Stiffeners may be required in certain areas, particularly around connectors or mounting points
  • Copper weight selection based on flexibility requirements
  • Layer symmetry for multi-layer designs

3. Advanced manufacturing processes

Flex PCB production involves several specialized processes:

  • Laser cutting for precise outline definition
  • Roll-to-roll manufacturing capabilities
  • Special handling requirements during production
  • Use of flexible solder mask or cover lay materials
  • Implementation of stiffeners in specific areas
  • Specialized testing procedures

4. Quality control

"For flex PCBs, most of the issues we see are related to design and production transfer," Jovanov notes. "The production process is completely different from standard PCBs, requiring specific methods and expertise."

Quality control measures include:

  • Bend testing for flexibility verification
  • Electrical testing under various flex conditions
  • Environmental stress testing
  • Dimensional accuracy verification
  • Material adhesion testing
  • Surface finish inspection

Looking ahead: copperdot's preparation for growing demand

At Bosch, we recognize the increasing importance of flexible PCBs in various industries. We're actively expanding our capabilities to meet this growing demand by:

  • Enhancing partnerships with specialized manufacturers who have proven expertise in complex flex PCB configurations
  • Ensuring our supplier network includes those with appropriate UL authorizations for various flex PCB types
  • Further increasing our expertise in design validation and quality assurance specific to flexible circuits
  • Staying ahead of emerging applications and requirements across industries
  • Expanding our technical capabilities to support increasingly complex designs
  • Investing in relationships with manufacturers who specialize in advanced flex PCB manufacturing

Conclusion

A woman using her smartphone in a futuristic, illuminated environment, symbolizing digital connectivity and innovation powered by PCB technology supplied by copperdot.

The future of flexible PCBs is bright, with applications continuing to expand across industries. From enabling the next generation of electric vehicles to powering advanced medical devices, these versatile circuits are becoming increasingly crucial to technological advancement. With our copperdot PCB procurement service, we at Bosch are committed to supporting this growth by ensuring our capabilities match industry demands.

If you're developing new applications or technologies, understanding the potential and limitations of flexible PCBs is crucial. Our team is ready to help you navigate these considerations and find the optimal solution for your specific need.

Contact us today to discuss your next flex PCB project! We can help assess your design requirements and ensure your flexible circuit performs reliably for years to come.
